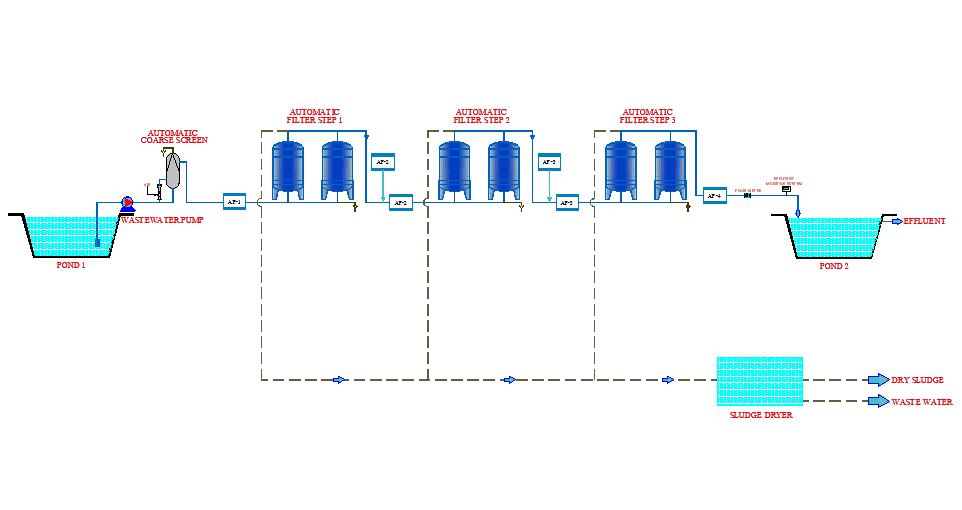

AF WASTE WATER TREATMENT UNIT

AF wastewater treatment unit is developed by Thai Private Company. It has capacity from 100-5,000 cubic meter/day. Wastewater treatment unit is suitable for various form of wastewater such as organic, inorganic substances, suspended solid, colloid, FOG, heavy metal, detergent, smell and turbidity etc.
After using wastewater treatment unit, the wastewater would be suitable for industrial factories, communities, fresh market aquaculture and agriculture.

Significant Advantages

  • Start the operating system is not complicated comparing with microbial wastewater treatment system, which is needed to start up before operating the system.
  • It is effective in treating contaminated wastewater such as organic, inorganic heavy metals, toxins, FOG, colloids, suspended solid, color, turbidity, phosphate, nitrogen, odors as well as various pathogens.
  • Easy to maintenance, the expert is not required and there is automatic operating system.
  • No recirculation sludge and no excess sludge issue same as microbial wastewater treatment system.
  • It takes less time to remove contaminants, therefore consuming less energy in operating the system.
  • Consume less area to be installed, no an odors issue, prevent resistance from the community.
  • There is less sludge than microbial wastewater treatment system. An efficient screw press system reducing the volume of disposal.
  • It built with strong structure, entire coverage and movable.
Model Capacity
Dimensions
(m)
Area (Sq.m)
L M
AF-100 100 2.0 9.0 18
AF-250 250 2.0 12.0 24
AF-500 500 3.0 14.0 42
AF-1000 1000 5.0 20.0 100
AF-2000 2000 7.0 26.0 182
AF-3000 3000 8.0 31.0 248
AF-4000 4000 10.0 36.0 360
AF-5000 5000 11.0 39.0 429

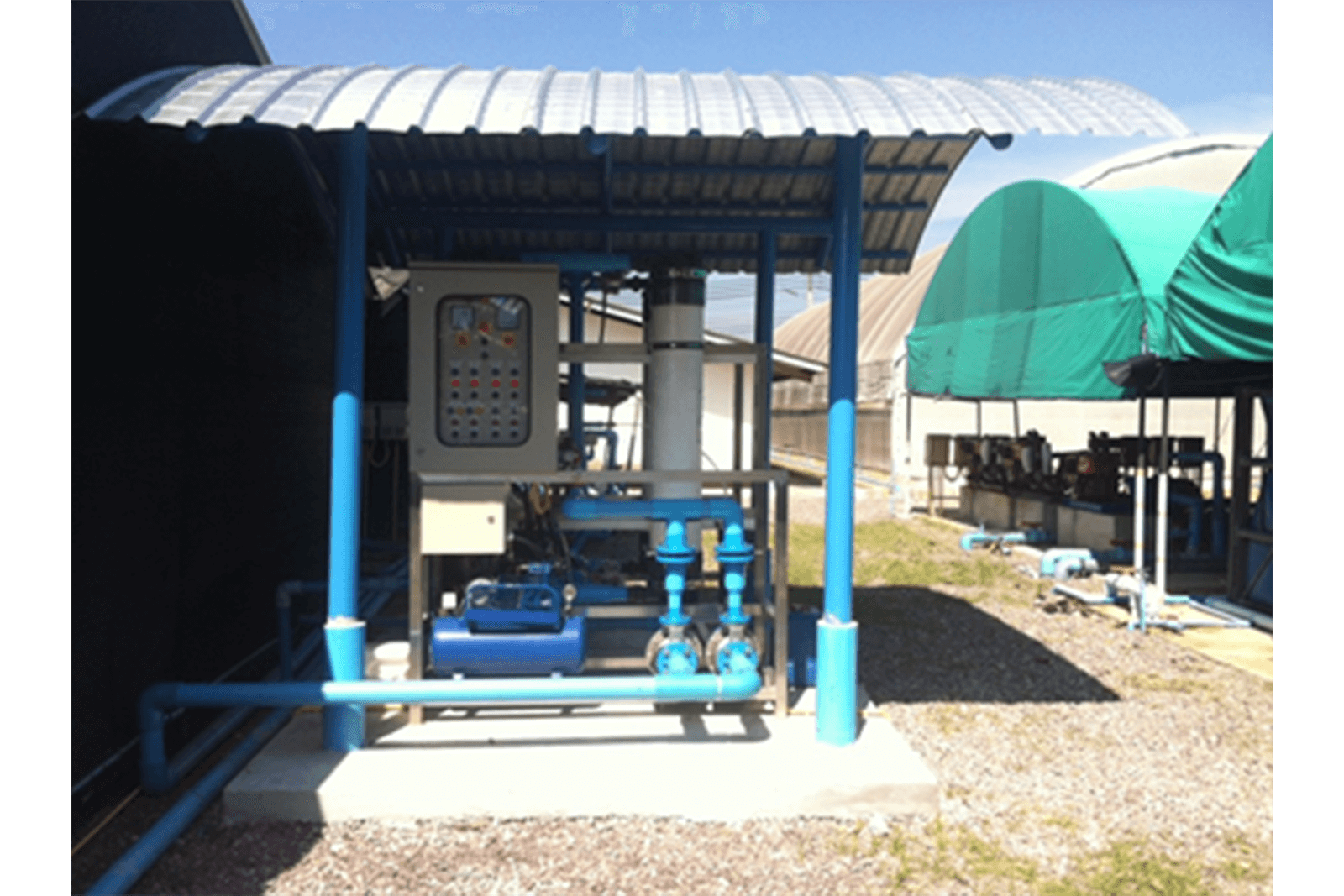

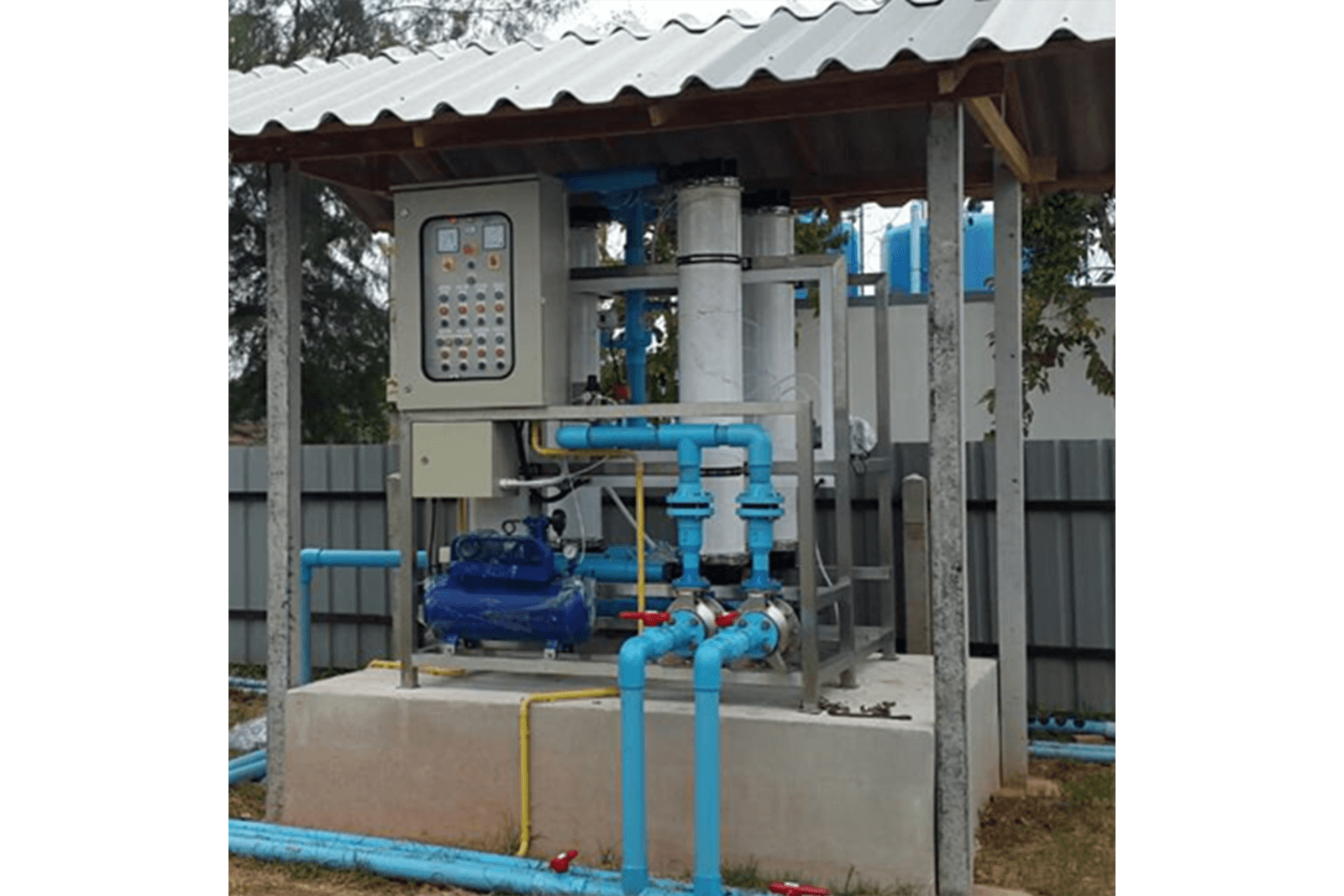

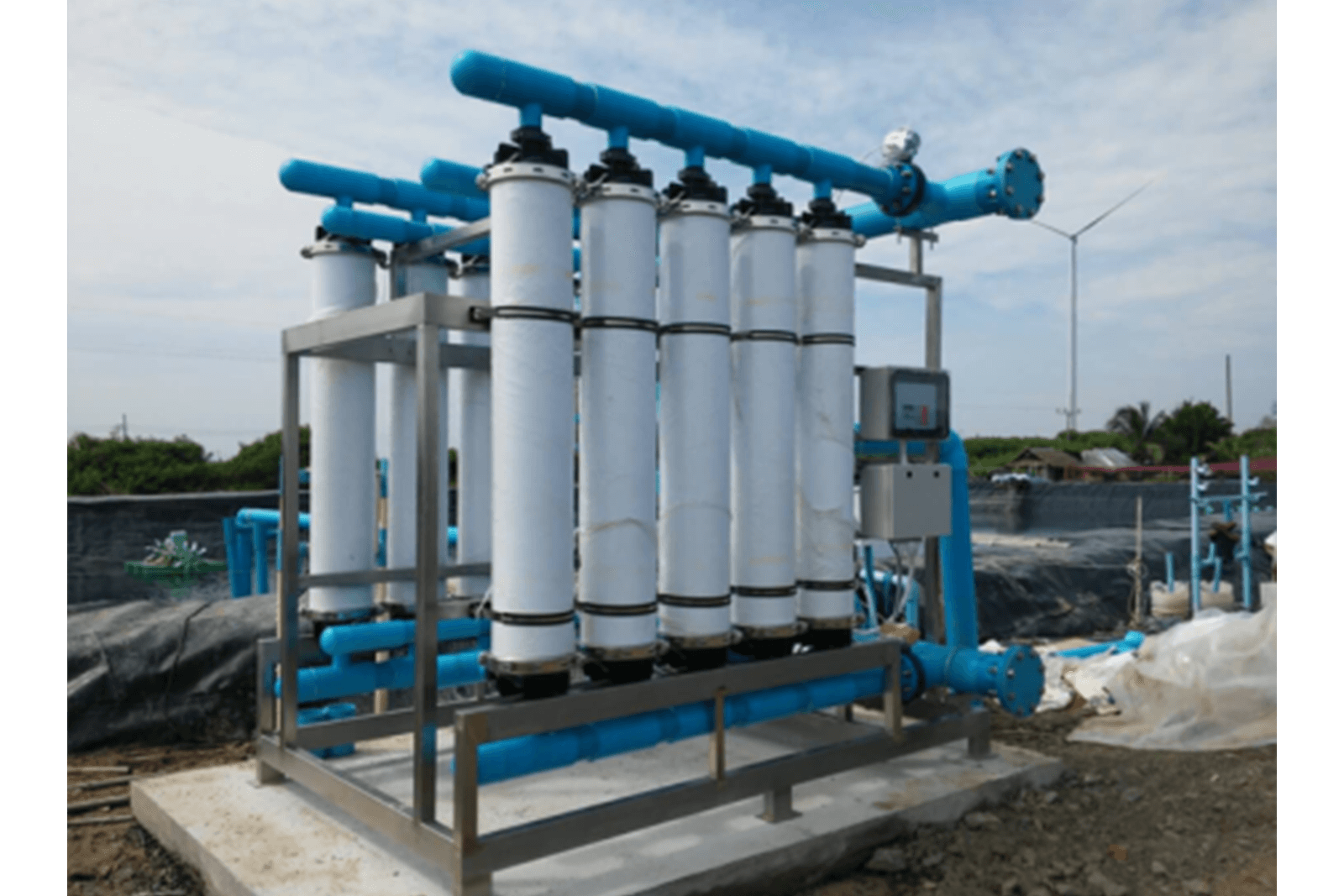

PAN Automatic Micron Filter ( AMF PAN )

AMF-PAN is water filter system that removes impurities by lowering contamination of water using a fine physical barrier, a chemical process, or a biological process. Filters cleanse water to different extents for purposes such as providing agricultural irrigation, drinking water and others.

Special Features

  • AMF-PAN can filter water very clean and clear.
  • AMF-PAN comes with different kind of models and sizes which is suitable for various types of raw water.
  • AMF-PAN built with an automatic water proof electrical controller.
  • AMF-PAN have an automatic Flush and Backwash system.
  • AMF-PAN filters are removable and cleanable, also it has self-cleaning system which is make AMF-PAN has longer service life.
  • AMF-PAN has filters size 0.04 micron.
  • AMF-PAN is comfortable and fast for both transportation and installation.
# Model Filtration rate
(Cubic meter/hour.)
Pipes for Inlet- Outlet Water
(mm.)
1 AMF PAN-10 10 50
2 AMF PAN-20 20 65
3 AMF PAN-30 30 80
4 AMF PAN-40 40 100
5 AMF PAN-50 50 125
6 AMF PAN-60 60 125
7 AMF PAN-70 70 150
8 AMF PAN-80 80 150
9 AMF PAN-90 90 200
100 AMF PAN-100 100 200

***(water inlet < 0.5 NTU)

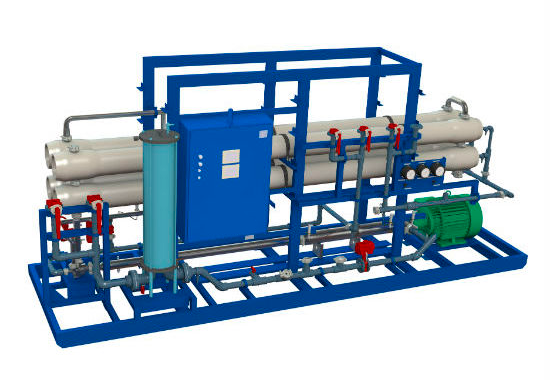

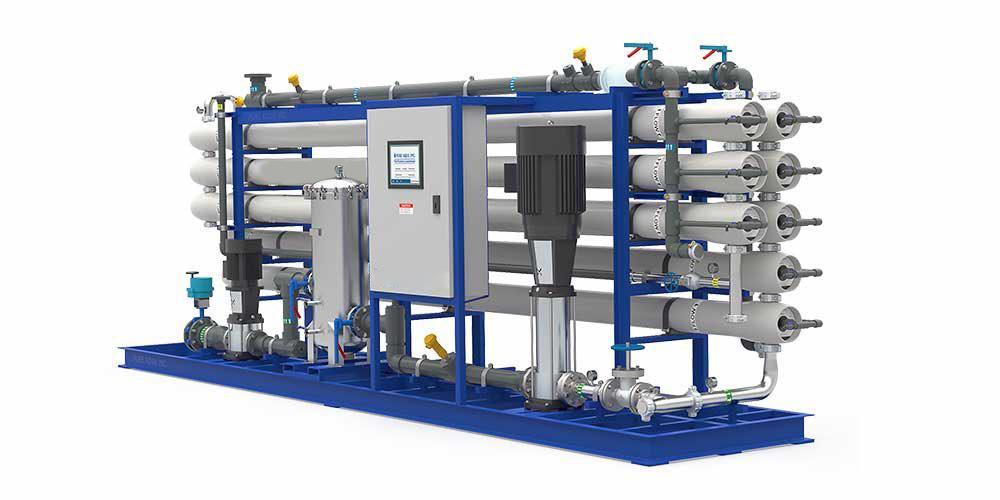

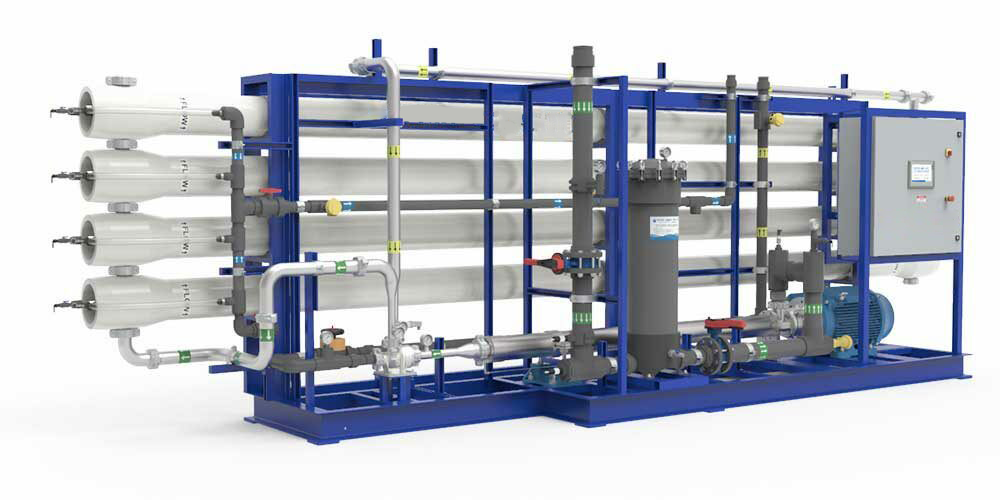

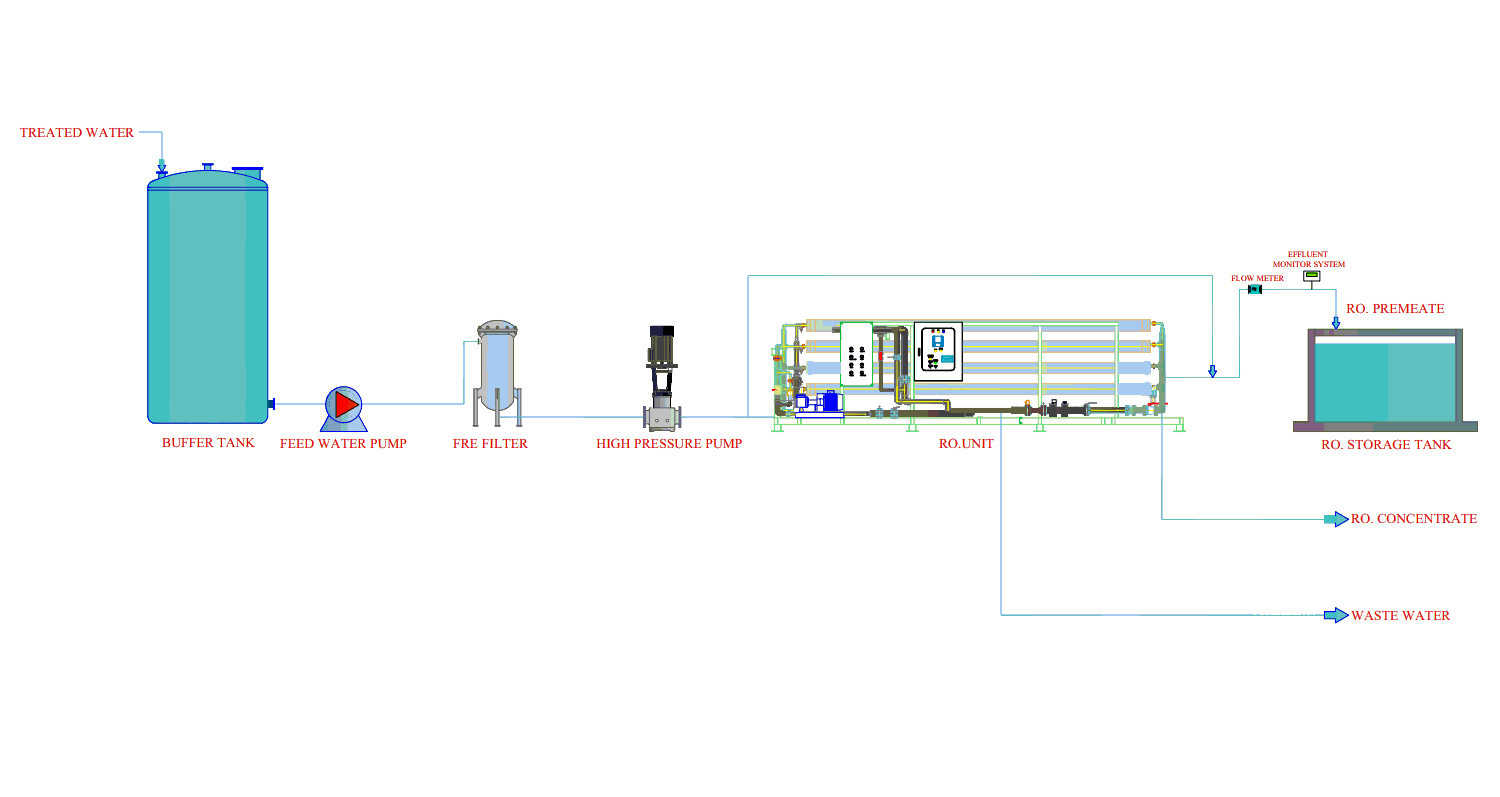

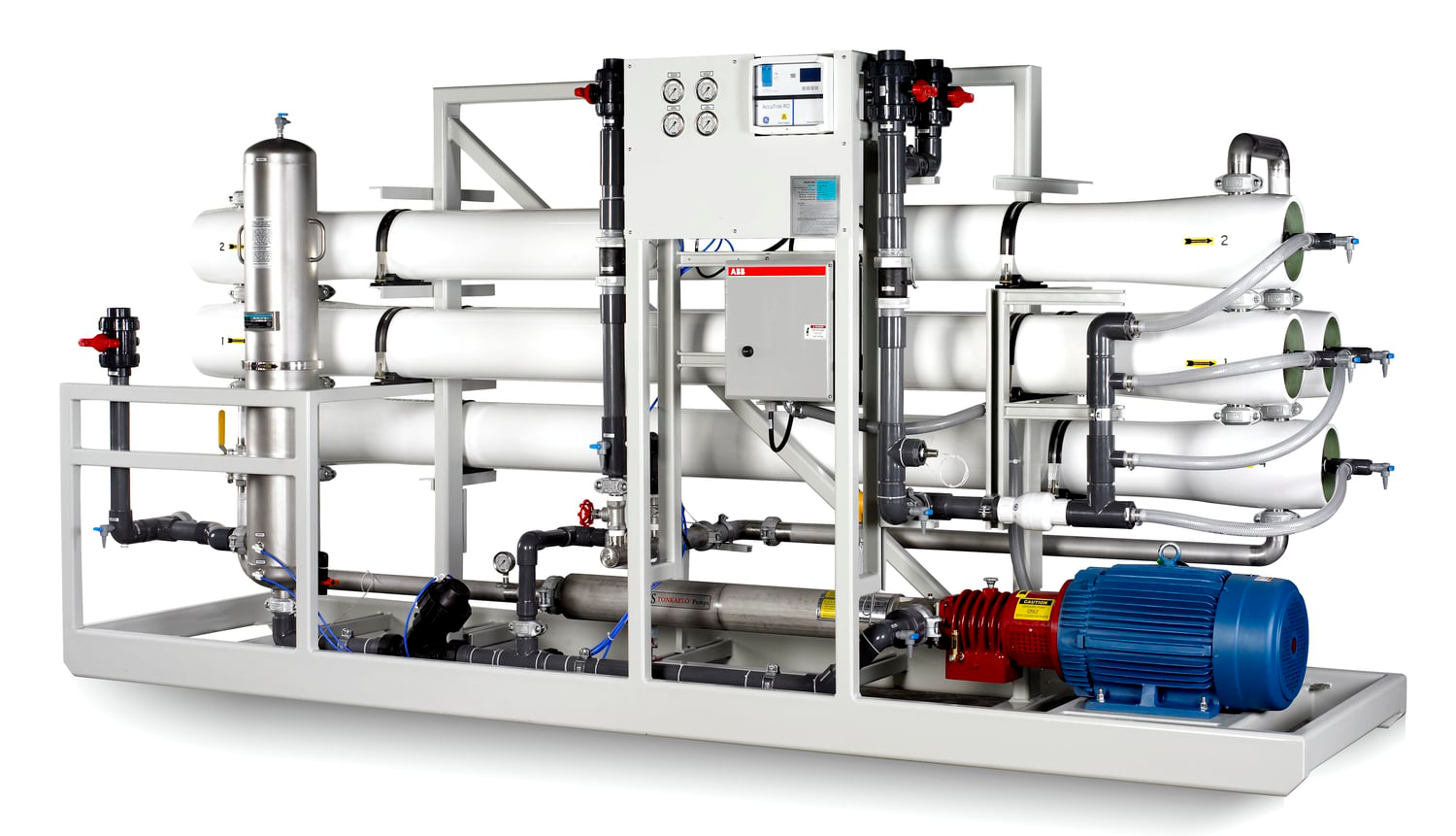

Drinking water purifier set with REVERSE OSMOSIS (RO.)

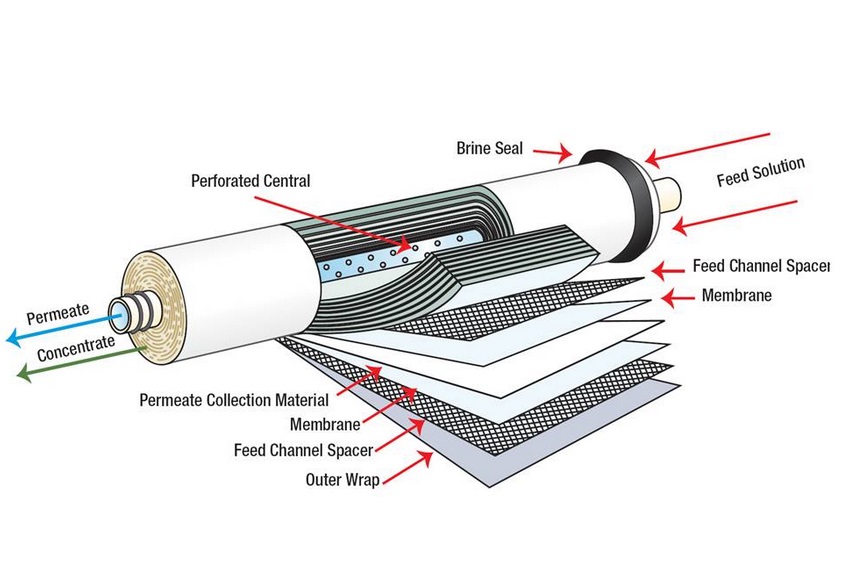

Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to separate ions, unwanted molecules and larger particles from drinking water. In reverse osmosis, an applied pressure is used to overcome osmotic pressure, a colligative property that is driven by chemical potential differences of the solvent, a thermodynamic parameter. Reverse osmosis can remove many types of dissolved and suspended chemical species as well as biological ones (principally bacteria) from water, and is used in both industrial processes and the production of potable water.

Special features
  • Drinking water purifier set with REVERSE OSMOSIS (RO.) can be directly connected to the tap water pipes.
  • Spare part of filter set is included.
  • Built with an automatic electrical controller system.
  • Electrical system is 220 vac/50 hz
  • Consist of PE Drinking water tank for containing clean water.
  • Structure is made of 304 stainless steel that strength and durability.
  • Can be used for both tap water and ground water with a TDS value not exceeding more than 500.
  • Can be produced pure and clean drinking water with RO system and UV sterilization

UV

PRODUCT FOCUS / PERFORMANCES
  • UV is chemical free and produces no disinfection by-products (DBPs)
  • UV can easily inactivate, even with low UV Dose, chlorine resistant microorganisms such as Cryptosporidium and Giardia
  • UV can be part of a Multibarrier protection strategy in addition to other disinfection methods (such as Ozone systems)
  • UV can be easily retrofitted into an existing treatment plant thanks to its compact size.
DRINKING
& PROCESS WATER

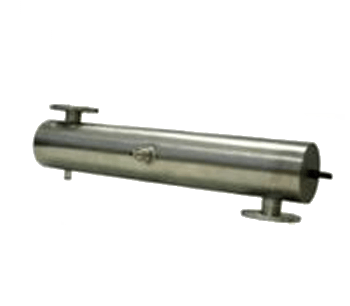

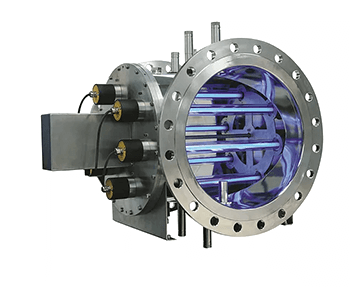

FEATURES Aquaray®
LP
Aquaray®
SLP-DW/PW
Aquaray®
SMP-DW/PW
Aquaray®
H2O
Aquaray®
LPTS
Type of reactor Closed vessel Closed vessel Closed vessel Closed vessel Closed vessel
Installation Horizontal & Vertical Horizontal & Vertical Horizontal Horizontal Horizontal & Vertical
Number of Lamps 1 to 4 1 to 20 1 to 2 6 to 12 1 to 4
Power consumption
(per lamp)
120 W 120 W 1,5 or 3 or 6 kW 4 or 8 kW 200 W
Flow range
(at 40 mJ/cm² and 95% UVT )
9 to 40 m3/h 25 to 940 m3/h 22 to 440 m3/h 1 500 to 8 600 m3/h 10 to 33 m3/h
(at 120 mJ/cm²and 98% UVT)
APPLICATIONS
Municipal Drinking Water
Disinfection x x x x -
AOP x x x x -
Food and beverage
Disinfection x x x x x
Ozone destruction x x x - x
Aquaculture
Disinfection x x x x -
Power Generation
Disinfection - x x x x
TOC reduction - x x - x
Cooling Water
Disinfection x x x x -
Microelectronics
Disinfection x x x - x
Ozone destruction x x x - x
TOC reduction - - x - x
Pharamaceutical
Disinfection x x x - x
Ozone destruction x x x - x
TOC reduction - x x - x
WASTEWATER

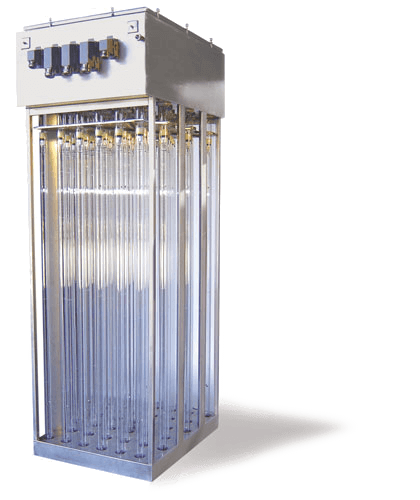

FEATURES Aquaray®
SLP-WW
Aquaray®
SMP-WW
Aquaray®
40HO
Aquaray®
3X
Type of reactor Closed vessel Closed vessel Open channel Open channel
Installation Horizontal & Vertical Horizontal Vertical Vertical
Lamp technology Low Pressure
High Output Amalgam
Medium Pressure
High Output
Low Pressure
High Output
Low Pressure
High Output Amalgam
Number of Lamps 1 to 20 1 to 4 40 36
Power Consumption
(per lamp)
200 W 1,5 or 3 or 6 kW 165 W 400 W
Flow range
(at 35 mJ/cm² and 65% UVT )
10 to 200 m3/h 22 to 346 m3 /h 315 m3 /h per module 800 m3 /h per module
APPLICATIONS
Wastewater disinfection x x x x x
Reuse wastewater x x x x x
Industrial wastewater treatment x x x x x
CSO & SSO x x x x x

*** This model need to be assembled at site

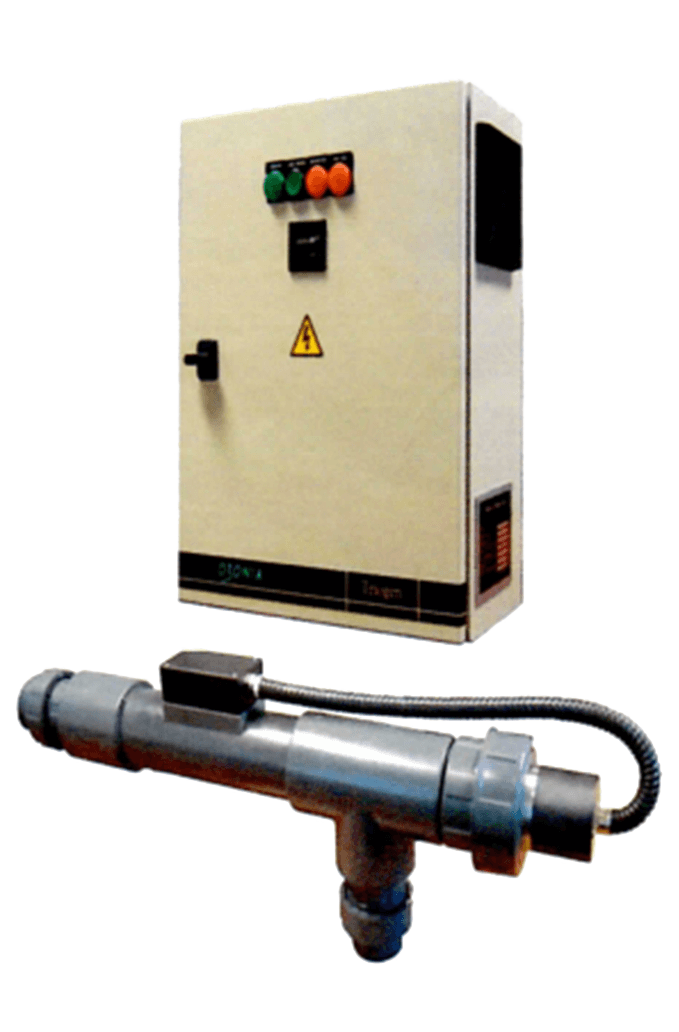

MPVC 75-200 UV Systems

Medium pressure uPVC UV systems
for aquarium and saltwater applications
Reactor details
  • Reactor vessel constructed from uPVC.
  • Internal 316 Stainless Steel reflector.
  • Easily removed lamp & thimble assembly.
  • Easy thimble cleaning arrangement.
  • Thermostat protection of the reactor.
  • Connections in metric or imperial sizes.
Description
  • The MPVC meduim pressure UV systems have been specifically designed as cost effective units for use in Aquariums or other salt water applications.
  • The reactor body is manufactured in uPVC material to avoid internal corrosion that often occurs with welded fabrications.
  • The main body length is pretected from the UV light by a 316 Stainless Steel liner tube fitted internally.
  • The system is easy to install in standard uPVC pipework systems and the controls are simple and easy to operate.
  • The reactor vessel design allows easy withdrawal of the lamp and thimble assembly as one unit for periodic cleaning of the thimble external surface.
  • The use of our quick release lamp powerhead connector also allows quick and easy lamp replacement.
  • No specialised tools are required for either of these operations and can easily be carried out pool operators.
Features and Benefits
  • Reactor temperature sensor.
  • 50% factory set power option.
  • Small wall mounted control panel.
  • Simple to install and operate.
  • Effective against Cryptosporidium.
  • Highly resistant to corrosion attack.

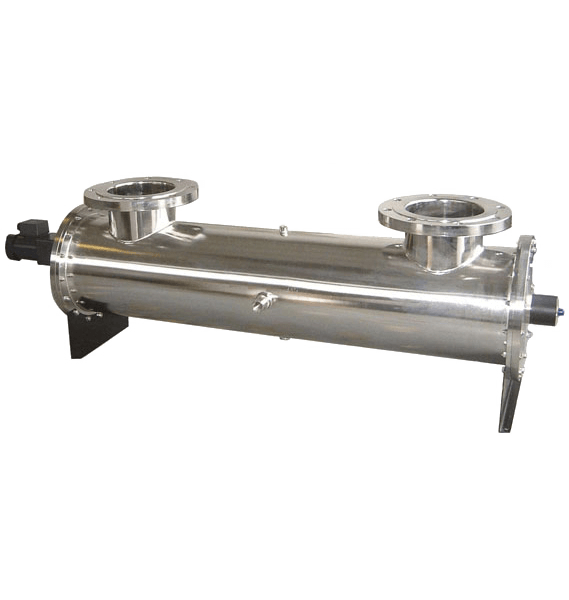

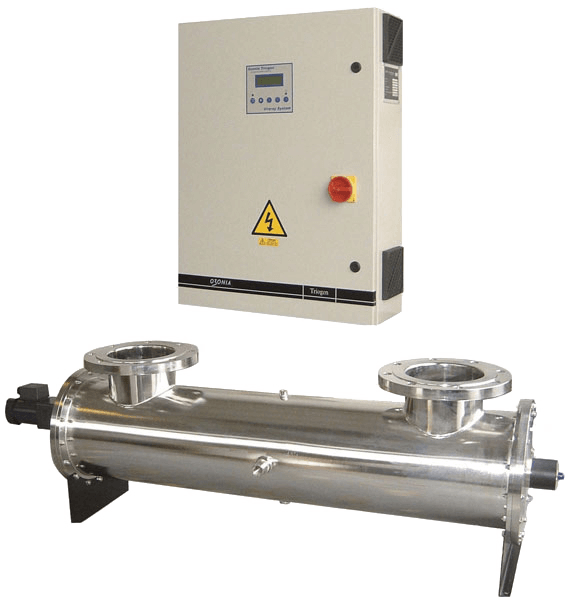

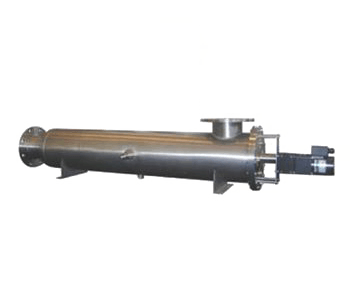

AQUARAY® SMP-DW/PW

UV Systems

The Aquaray® SMP-DW/PW range offers compact and high efficiency system for small and medium water plant with a range of flow rates from 22 to 440m3/h with exceptional reliability and ease of operation.

APPLICATIONS
  • Drinking water
  • Process water
  • Aquaculture
  • Deozonation
  • Toc Reduction
  • Ballast water
  • Cooling water
  • dvanced oxidation
UV TECHNOLOGY : SMP-DW/PW

The Aquaray® SMP-DW/PW units have been designed to disinfect potable or process water. The germicidal effect of the UV light inactivates most micro-organisms such as bacteria, viruses and parasits. UV is known to be particularly efficient to inactivate Cryptosporidium Parvum and Giardia Lamblia.
The medium pressure lamps have an action on nucleic acid and proteins for micro-organisms inactivation. The UV dose (UV intensity x contact time) defines the treatment efficiency which is provided by the unit. The effective dose applied depends on the UV transmittance of water to be treated as well as the proper hydraulic design of the unit.

HOW IT WORKS

The medium pressure lamps are powered by magnetic ballasts. The lamps are inserted in pure quartz sleeves isolating them from the water. The lamps can be easily changed when indicated by the micro-processor control unit.
A UV sensor is installed to monitor UV radiation. An optimal wiper system is available for cleaning the UV lamp quartz sleeve.

MAIN CHARACTERISTICS
  • Multi emission medium pressure Lamp
  • Power step regulation
  • Simple control logic
MAIN FEATURES
  • Polychromatic medium pressure lamps for highest germicidal efficiency
  • Fewer lamps
  • Easy to install in new or existing water plants
  • User friendly operator interface microprocessor controlled
  • Data logging for up to one year
TECHNICAL DATA
SMP-DW/PWModel
Flow Rate (1)
(m 3/h)
TotalLampPower
(kW)
Reactor (mm) In-Out Control Panel:
L x H x W
(mm)
A B C D E F G H J K L M N
SMP 100-75-1/2 22 1.5 100 125 700 145 1065 175 900 700 70 100 100 350 285 DN 80 600 X 600 X 210
SMP 100-75-1 44 3 100 125 700 145 1065 175 900 700 70 100 100 350 285 DN 80 600 X 600 X 210
SMP 150-100-1 79 3 150 150 650 170 1065 225 900 700 120 150 125 350 285 DN 100 600 X 600 X 210
SMP 200-150-1 109 3 200 175 600 195 1065 275 900 700 170 200 150 350 285 DN 150 600 X 600 X 210
SMP 250-150-1 136 3 250 200 600 195 325 325 900 1000 220 250 175 350 285 DN 150 600 X 600 X 210
SMP 250-200-1 272 6 250 200 600 220 375 325 1250 1000 220 250 175 350 285 DN 200 800 x 1200 x 300
SMP 300-250-1 319 6 300 250 900 220 425 375 1250 1000 270 300 200 350 285 DN 250 800 x 1200 x 300
SMP 300-250-2 440 12 300 250 900 220 650 375 1250 1000 270 300 200 350 285 DN 250 800 x 1200 x 500

OZONE

OZAT® CFS

Second Generation Compact Ozone Generators

The OZAT® CFS ozone generators are a range of small units which incorporate the same features as Ozonia’s larger units such as AT dielectrics and IGBT power electronics.

PRODUCT HIGHLIGHTS
  • High performance
  • Compact and versatile
  • Low-cost
  • High ozone concentration
  • Low specific power
  • User friendly
  • Easily integrated
  • Low service requirement
MAIN FEATURES
  • Production rates from 53 to 690g O3/h from oxygen
  • Production rates from 37 to 470g O3/h from air
  • Robust industrial quality for reliability and lone service life
  • Hign ozone concentration at full-load
  • Very compact dimensions for easy intrgration
  • Low maintenance and service personnel requirement
APPLICATIONS
  • Bottled water plants
  • Cooling towers
  • Aquaculture, etc.
MAIN CHARACTERISTICS
  • Advanced technology
  • Fully assembled and tested
  • Compact dimensions

LAB2B

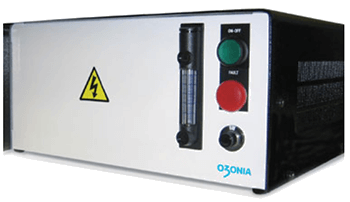

Ozone generator

The LAB2B is a corona discharge type ozone generator with variable ozone output. Producing up to 4g O3/h using air and 10g O3/h using oxygen. The LAB2B is designed specifically for laboratory research.

PRODUCT HIGHLIGHTS
  • Variable ozone output up to 10g O3/h
  • Operate under vacuum or at maximum pressure of 10psig
  • Illuminating switches indicating ozone production and faults
  • Air cooled
  • O&M manual included performance graphs
  • Full twelve months warranty
  • Technical backup facilities
MAIN CHARACTERISTICS
  • Ozone generator especially designed for laboratory use
  • Up to 10g O3/h
  • Compact dimensions
  • Feed Gas: Air or Oxygen
APPLICATIONS
  • Research and Development
  • Education

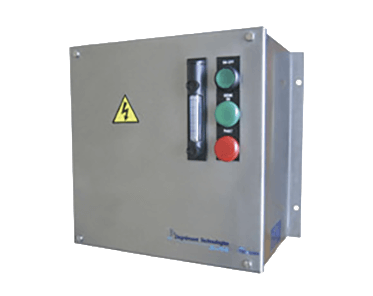

TOGC2

Ozone generator

The TOGC2 is a corona discharge type ozone generator with variable ozone output. Producing up to 4g/h using dry air and 10g/h using oxygen. The TOGC2 is designed specifically for small industrial ozone applications.

PRODUCT HIGHLIGHTS
  • Variable ozone output up to 10g/h
  • Can operate with ambient air, dry air or oxygen
  • Operates under negative and positive pressure
  • Illuminating switches indicating ozone production and faults
  • Fan assisted air cooling
  • Operating and maintenance manual included performance graphs
  • Full twelve month warranty and technical backup facilities
APPLICATIONS
  • Industrial oxidation processes
  • Drinking water
  • Waste water
  • Bottled water
  • Education
MAIN CHARACTERISTICS
  • Ozone generator producing up to 10g/h for industrial use

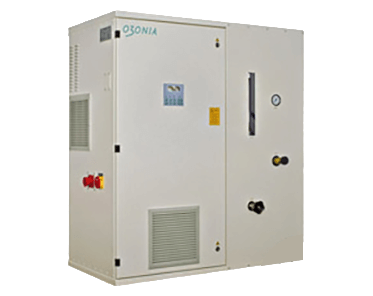

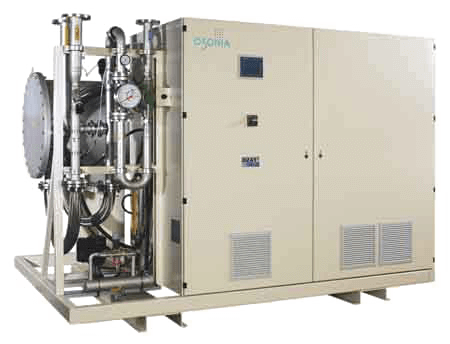

OZAT® CFV

OXYGEN & AIR - Fed Compact Ozone Generators

The OZAT® CFV ozone generators incorporate Ozonia’s patented “Advanced Technology” dielectric segments together with a state-of-the-art IGBT power supply unit.

PRODUCT HIGHLIGHTS
  • High performance
  • Compact versatile skid
  • Low-cost
  • High ozone concentration
  • Low specific power
  • User friendly
  • Easily integrated
  • Low service requirement
APPLICATIONS
  • Drinking water treatment
  • Effluent treatment
  • Process related use
MAIN FEATURES
  • Production rates up to 26kg O3/h from oxsgen
  • Production rates up to 9kg O3/h from air
  • High ozone concentration at full-load
  • Robust industrial quality for reliability and long service life
  • Skid mounted with a small footprint for easy integration
  • Minimum maintenance and service personnel requirement
  • Choice of PLC with user friendly interface and optional bus
  • Water cooled horizontal vessel type ozone generator
MAIN CHARACTERISTICS
  • Advanced technology
  • Fully assembled and tested
  • Compact dimensions

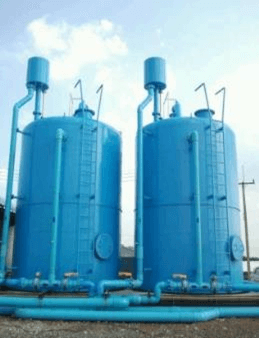

Automatic GravitySand Filter (AGSF)

Gravity sand filter or rapid gravity filter are most commonly used in Municipal water purification plants worldwide. They use relatively coarse sand and other granular media to remove particles and impurities that have been trapped in a floc through the use of flocculation chemicals. Water and flocs flows through the filter medium under gravity and the flocculated material is trapped in the sand matrix. These filters are typically designed as part of multi-stage treatment systems. AGFS is the ultimate technology of sand filter system.

AGFS is the ultimate technology of sand filter system.
  • Can filter water very clean and clear, improving support capacity for raw water turbidity up to 50 NTU.
  • Available in many models and sizes, according to requirements and types of raw water.
  • No need for electricity and human to control, it can be worked automatically by gravity system.
  • No need for water pumps to process backwashing filter system.
  • Save water, reduce electricity and maintenance costs.
  • No need human maintenance.
  • Comfortable and fast for both transportation and installation.
No. Model Filtration rate
(Cubic meter/hour)
Dimension
(area*height) (meter*meter)
Weight of tank while operation
(Ton)
Pipes for Inlet-Outlet water
(mm.)
1. Single State (SS) Turbidity of Inlet raw water less than 20 NTU
1.1 AGSF SS-24 35 2.40 X 4.5 26 100
1.2 AGSF SS-28 2.85 X 4.5 65 34 125
1.3 AGSF SS-35 3.50 X 4.5 80 56 150
1.4 AGSF SS-46*** 4.60 X 4.5 100 92 200
2. Double State (SS) Turbidity of Inlet raw water less than 50 NTU
2.1 AGSF DS-24 35 2.40 X 4.5 55 100
2.2 AGSF DS-28 2.85 X 4.5 65 76 125
2.3 AGSF DS-35 3.50 X 4.5 80 120 150
2.4 AGSF DS-46*** 4.60 X 4.5 100 205 200

*** This model need to be assembled at site.
