Oxygen Generator

Oxygen is essential for all living such as human terrestrial animals, aquatic animals etc. Aquatic animals need oxygen for respiration process and growth as well as degradation of organic matter, dissolving of oxygen in water or DO (dissolved oxygen). Oxygen levels are able to indicate water quality. The oxygen level lower than normal, resulted in polluted water and aquatic animals cannot be survived.

Benefices of oxygen generator
  • Generate aeration and oxygen in shrimp farming (Hatchery).
  • Generate aeration and oxygen in packaging process.
  • Generate aeration and oxygen in shrimp farming
  • Generate aeration and oxygen in fish farming
  • Generate aeration and oxygen during transportation processes.
  • Can be used to generate oxygen and aeration in industry sector such as factory wastewater treatment.
Significant features of oxygen generator
  • Increase oxygen level in water up to 90%
  • Appropriate size for aquaculture (aquatic farm) and easy to install.
  • Suitable for fish farming, shrimp farming, and other aquafarming
  • As a result of oxygen generator, aquatic animals can grow faster and stronger.
  • Can be use to replaced liquid oxygen gas.
  • Saving electricity
รุ่นและขนาดของ Oxygen Generator
Classification (Mode)
IND-7.5LC

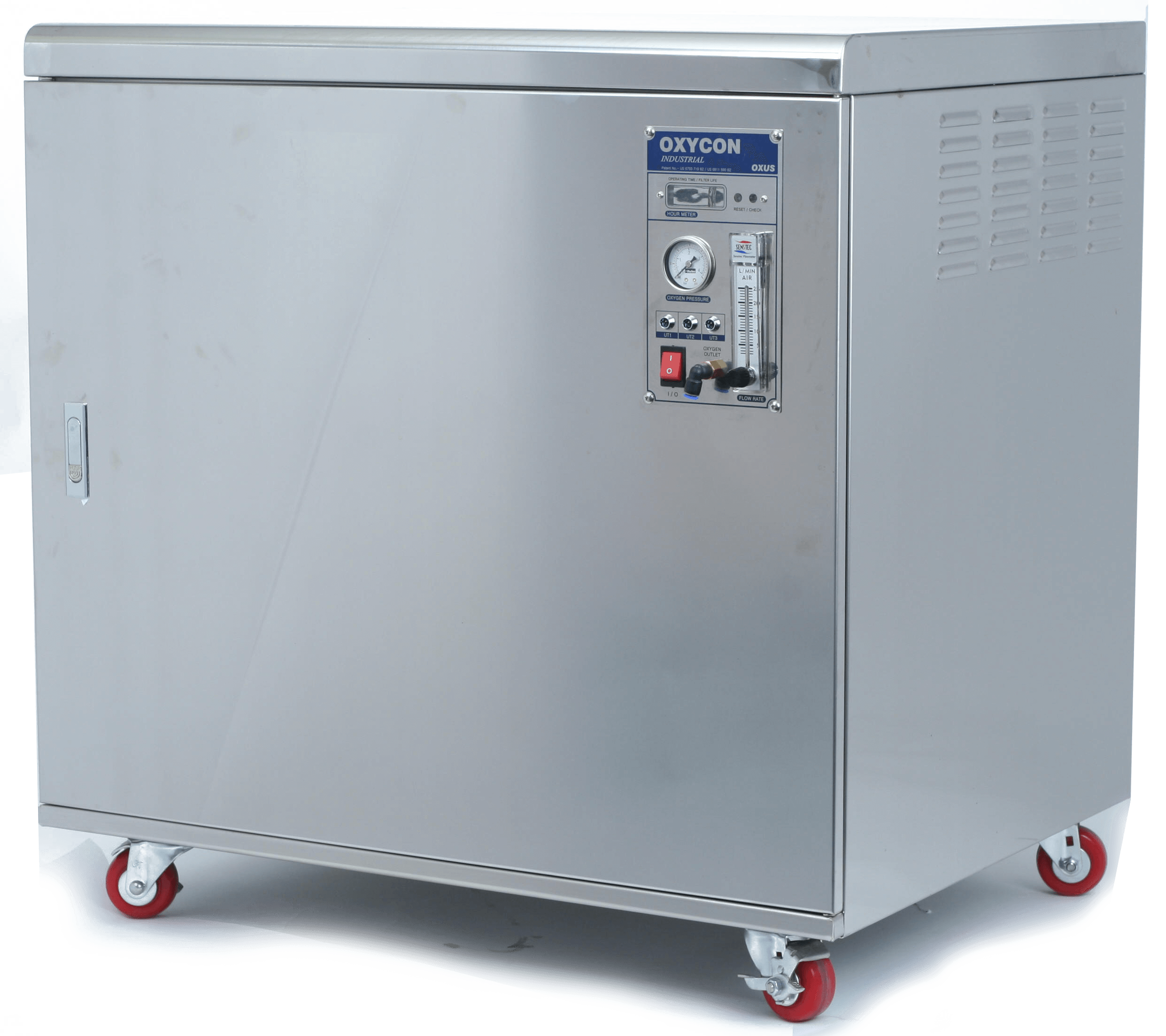

IND-22.5LC
FRM-12F12U
Flow Rate (L/min) 6L/min ± 10 18L/min ± 10% 72L/min ± 10%
O2 Purity Level 90%↑ 90%↑ 90%↑
Voltage / Frequency 220V / Hz 220V / Hz 220V / Hz
Consumption Power 0.45KW ± 10% 1.35KW ± 10% 5.76KW ± 10%
Working Temperature -15 ~ 45°c -15 ~ 45°c -15 ~ 45°c
Set Flow for O2 Output 6.5 L./min 22 L./min 96 L./min
Set Pressure for O2 Output 1.2 Bar↑ 1.2 Bar↑ 1.5 Bar↑
Initial Driving for load 0.72 ~ 0.96 KW 2.16 ~ 2.88 KW 8.64 ~ 11.52 KW
Demension (W x D x H) 560 x 300 x 600 mm 780 x 650 x 780 mm 1,530 x 500 x 1,800 mm
Weight 38 KG 110 KG 370 KG

Oxygen Diffuser

Model and size of oxygen diffuser
No Description OXD-SS
1 length (CM) 10
2 Flow rate (Ltr/minute) 0.75
3 Pressure (bar) 0.6
4 Oxygen Diffuser material Titanium
Benefices of oxygen diffuser
  • Boosts efficiency of aeration and oxygen in fish and shrimp pond
  • Provides high oxygen dissolving efficiency.
  • Oxygen diffuser can be washed by acid and sterilized by chlorine.
  • Suitable for aeration in shrimp farming, fish farming and aquaculture transportation etc.
  • It is adjustable, according to user requirement and pond suitability.
  • It is durable, not corrode and easy to maintain.
  • Reduce using pond aerator propeller, resulted in saving electricity.
  • Increase oxygen level in water and aquatic animals grow faster.

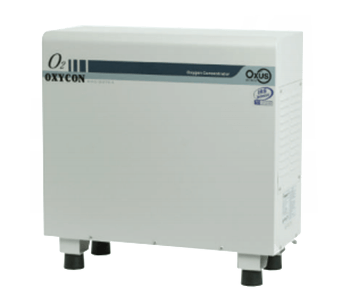

Oxycon(Outdoor)Series

Specifications

Model REX-077C4 REX-107C REX-253C REX-077C5
Purify (%) 67 28 67
Flow Rate (LPM) 7 10 25 7
Power (W) 480 (220VAC/50Hz)
Noise (dB) 55
Weight (Kg) 34 36
Dimensions (mm) 566(W) X 243(D) X 578(H) 583(W) X 243(D) X 578(H)
Usage Home Commercial Office Apartment
Character Standard Deluxe Ventilation Multi (+Aroma)

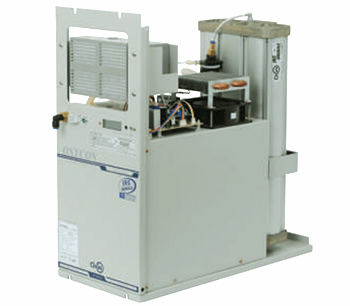

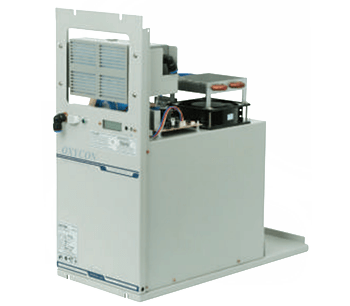

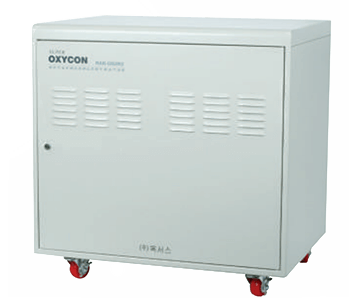

Model NEX-077U2 CMP-095U2 RAK-U03R2 RAK-U03R2
Purify (%) 67 21 67 28
Flow Rate (LPM) 7 95 21 95
Power (W) 480 480 1440 1440
Noise (dB) 60 60 65 65
Configuration O2 Unit C Unit O2 Unit 3 O2 Unit 2 / C Unit 1
Weight (Kg) 22 17 110 105
Dimensions (mm) 566(W)×243(D)×578(H) 800(W)×590(D)×700(H)
Feature O2 Unit C Unit 3+0 Rack 2+1 Rack
